MORI-SAY TMZ 842 CNC
The MORI-SAY TMZ 842 CNC 8-spindle lathe handles the production of parts from bar stock as well as from raw or pre-machined blanks.
This machine combines the high productivity and robustness of the cam-operated multi-spindle with the advantages of numerical control, which has been made easy for the operators to use.
The machine’s large machining area provides convenient access for setup and facilitates chip evacuation.
The machine is equipped with a dual Siemens 840D Solution Line CNC system for controlling 32 basic axes and 24 optional additional axes.
The 8 independent AC-motor-driven spindles feature an 11 kW power rating, enabling the machining of difficult materials.
OPTIONAL :
- Up to 5 Y-axis carriages, each capable of holding 3 stationary or rotating tools.
- Possibility of double pick-up
Characteristics

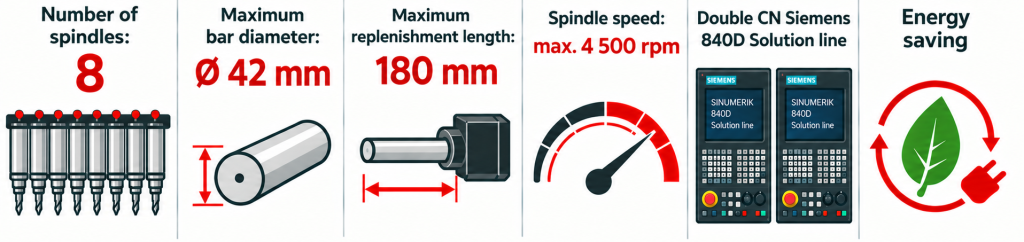

| Technical specifications | MORI-SAY TMZ 842 CNC |
|---|---|
| Number of spindle | 8 |
| Max. bar capacity | 42 mm |
| Max feeding length | 180 mm |
| Max. spindle speed | 4.500 tr/min |
| Spindle motor power | 11 kW |
| Indexing time | 1 sec |
| Number of longitudinal slides | 8 |
| Number of cross slides | 7 |
