K'MX 620
Reliability, Precision & Power
This machine is designed for machining complex parts up to Ø20mm.
Les 6 axes linéaires CNC (X1, Y1, Z1, X2, Y2, Z2), et les 2 axes rotatifs (C1,C2) vous offrent de grandes possibilités d’usinage en reprise.
The simple kinematics and the latest-generation FANUC CNC system of this K’MX 620 machine ensure quick and easy programming. Operators will appreciate the reduced setup time.
This high-performance machine is fitted with two electric spindles, each with a maximum speed of 12,000 rpm, and a rotary guide barrel synchronised with the main spindle.
Média

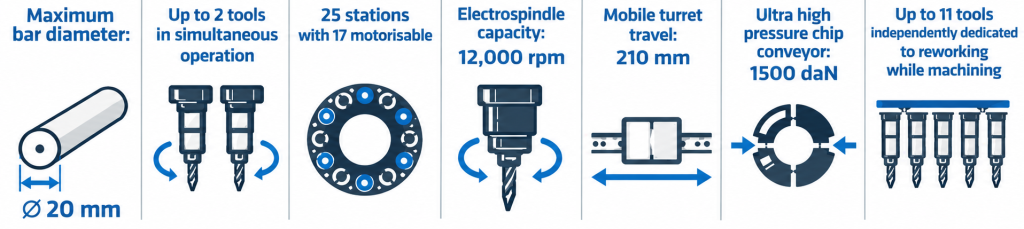

Technical Data
| Technical specifications | K'MX 620 | |
|---|---|---|
| Max. diameter from the bar Ø | 20 mm | |
| Number of linear axes | 6 | |
| Main pin | Spindle power kW 100% / 30% | 3,7/5,5 kW |
| Max. spindle speed (rpm) | 12 000 tr/min | |
| Spindle stroke | 210 mm | |
| Re-tacking pin | Spindle power kW 100% / 30% | 2,2/3,7 kW |
| Max. spindle speed (rpm) | 12 000 tr/min | |
| Channel scheduling | 2 | |
| Number of cutting tools in use simultaneously | 2 | |
| Power of rotating tools | 2 kW |
Latest-generation FANUC numerical control system.
Options: Rotating tools | Chip conveyor | C-axis on main spindle and secondary spindle | Long-part retrieval device | Oil mist extraction system | Fire suppression system | High-pressure coolant spray | Pneumatic nozzle | FANUC SLO chip breaker
