TMZ 518 CNC
Our brand-new concept !
This CNC multi-spindle lathe features 5 spindles. Its cast-iron bed ensures a rigid, high-speed machine.
Designed for medium- to high-volume production of parts up to 19 mm in diameter, it comprises a bar feeder, an oil treatment system, a chiller, and a chip conveyor.
The spacious work area, combined with the VDI quick-change tooling system, facilitates easy and intuitive setup. Machined parts and bar remnants are collected in two separate containers located at the rear of the machine.
AVAILABLE IN 2 VERSIONS :
• TM – 24 motor axes, synchronized spindle speed;
• TMZ – 30 motor axes, independent spindle speed.

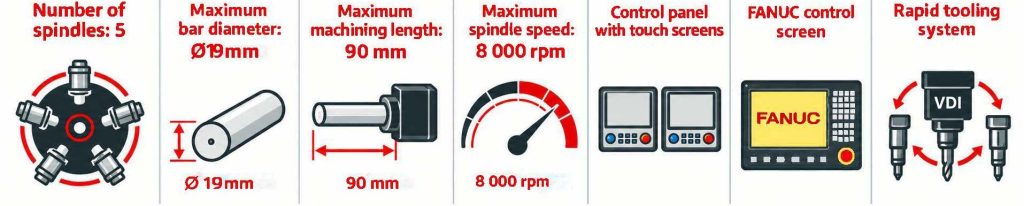

Characteristics
| Technical specifications | TMZ 518 CNC |
|---|---|
| Number of spindle | 5 |
| Max bar diameter | 18 or 19 |
| Max feeding length | 0-90 mm |
| Speed range of spindles | 8 000 min-1 |
| Spindle motor power TMZ | 3,7 kW |
| Spindle motor power TM | 7,5 kW |
